DIN Analog Panel Meters

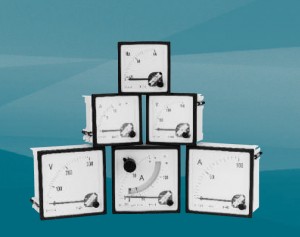

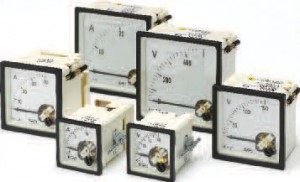

Crompton Instruments manufactured DIN Analog Panel Meters offering a full line of High Quality durable ranges of 48, 72, 96 and 144mm.

• Model E242 = 48 x 48 mm
• Model E243 = 72 x 72 mm
• Model E244 = 96 x 96 mm
• Model E246 = 144 x 144 mm

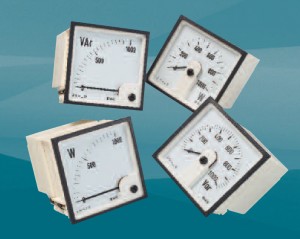

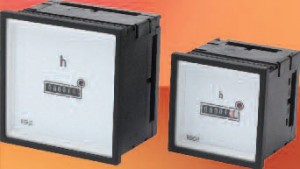

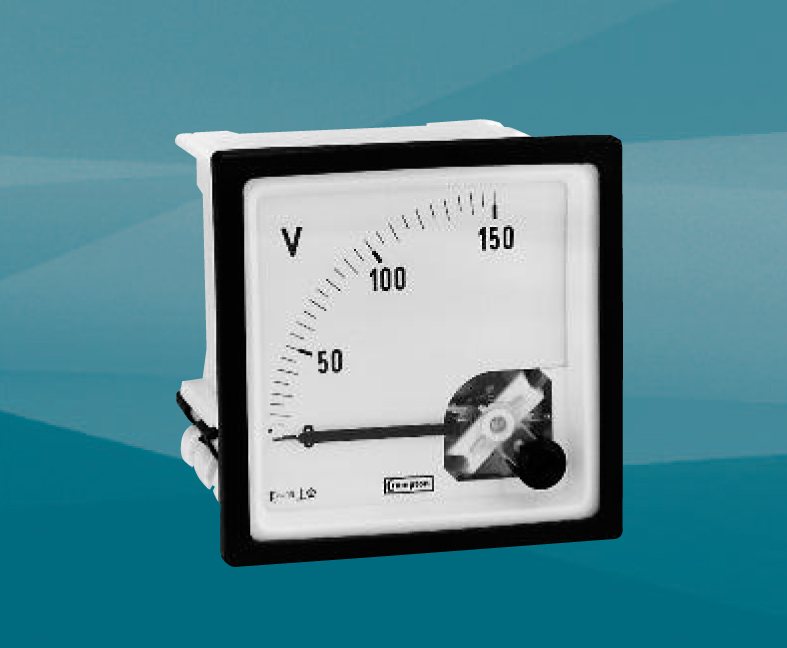

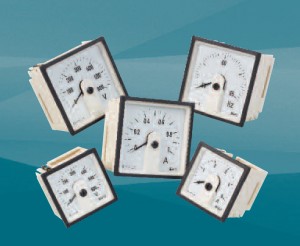

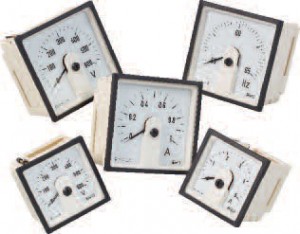

DIN Analog Panel Meters are available in Short-Scale 90 Degree Scale or Long-Scale 270 Degree Scale ammeters, voltmeters, frequency meters, hour meters, power factor meters, watt meters , varmeters, ac max demand ammeters, and 360 Degree LED synchroscopes incorporate slide-in dials and terminal covers, as standard options.

Advantages are easy installation. Models have only two terminals to connect. There are no configuration settings or setup menus to complicate the installation. Analog ammeters and voltmeters do not require external power.

Marine Approved (Lloyds Marine) on selected models.

The Crompton Instruments product range represents one of the largest product offerings of power measurement, control, and protection instrumentation, for switchgear and generator set manufacturers, panel builders and OEMs.

Crompton Instruments products offer proven reliability across a diverse array of industries including power generation, process control, test and measurement, utility, marine, defence and energy management applications. To meet the challenges of ever decreasing lead times and industry developments, design and manufacturing processes are constantly reviewed and updated.

By combining local knowledge with over 100 years of research, product development and manufacturing capabilities, Crompton Instruments products provide the highest standards of performance and user convenience.

Features:

• 4 Case sizes
• IP52 Protection
• Marine Approved (Lloyds Marine on selected models)
• Shock resistant sprung pivot and jewel movement
• Terminal covers supplied as standard

Applications:

• Building management
• Control panels
• Distribution systems
• Energy management
• Generator sets
• Motor control
• Process control
• Switchgear
• Utility power monitoring

Standards:

• BSEN60051
• DIN43701

Approvals:

• cRUus E203000 (selected models, see spec sheet)
• CSA 242615 (selected models, see spec sheet)
• Lloyds Marine (selected models, see spec sheet)
